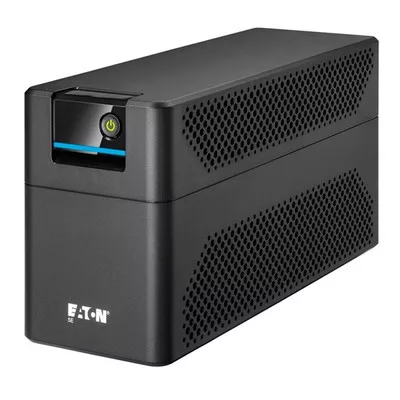

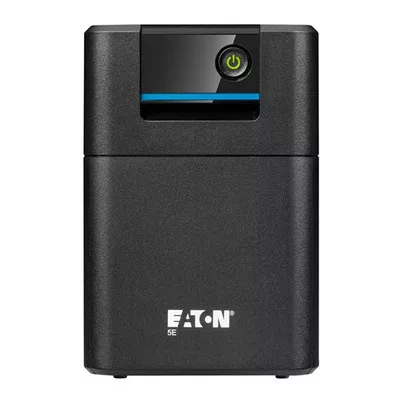

EATON UPS 5E550I, 5e Gen2, IEC, 550 VA, 300W, Input: C14, Outputs: (4) C13, Line-interaktív szünetmentes, AVR, torony

GENERAL SPECIFICATIONS

• PRODUCT NAME
• Eaton 5E Gen2 UPS
• CATALOG NUMBER
• 5E550I
• PRODUCT LENGTH/DEPTH
• 288 mm
• PRODUCT HEIGHT
• 148 mm
• PRODUCT WIDTH
• 100 mm
• PRODUCT WEIGHT
• 3.75 kg
• WARRANTY
• 2 year
• COMPLIANCES
• CB
• LVD Directive
• EMC Directive
• RoHS Directive
• Packaging Directive
• WEEE Directive
• Batteries Directive
• CERTIFICATIONS
• IEC/EN 62040-1
• IEC/EN 62040-2
• CE
• EAC
• UKCA
• Cm
• Ukr
• IEC/EN 62040-3
• TERMÉKJELLEMZŐK
• SECONDARY FREQUENCY
• MAX
• 60 Hz
• WATTAGE
• 300W
• FORM FACTOR
• Tower
• INCLUDES NETWORK CARD
• No

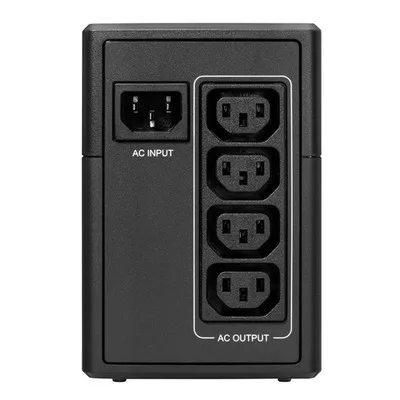

• INPUT CONNECTION
• C14
• INPUT VOLTAGE
• MIN
• 140 V
• OUTPUT VOLTAGE
• MAX
• 257 V
• SECONDARY FREQUENCY
• MIN
• 50 Hz
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 95
• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• Saves space with a compact tower design
• CONSTRUCTION TYPE
• Free standing model
• OUTPUT VOLTAGE
• MIN
• 195 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 195-257 V
• TOPOLOGY
• Line-interactive
• SURGE PROTECTION
• Yes
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT FREQUENCY RANGE
• 45-63 Hz
• INTERNAL BYPASS
• No
• INPUT VOLTAGE
• MAX
• 300 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• Automatic battery test, deep-discharge protection, cold-start capable
• AUTO SHUTDOWN FUNCTION
• No
• NUMBER OF OUTPUTS C13
• 4
• OPERATING TEMPERATURE
• MIN
• 0 °C
• VA RATING
• 550 VA
• POTENTIAL FREE SWITCH CONTACT
• No
• RECEPTACLE
• (4) C13
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• (2) IEC-IEC output cables
• Quick start
• Safety instructions
• FEED TYPE
• 1
• RUNTIME GRAPH
• View runtime graph
• USER INTERFACE
• LEDs
• BATTERY QUANTITY
• 1
• OPERATING TEMPERATURE
• MAX
• 40 °C
• VOLTAGE
• 230V
• HOT SWAP POWER
• No
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• ETHERNET INTERFACE
• No
• RELATIVE HUMIDITY
• 0-90% non-condensing
• OUTPUT APPARENT POWER
• 550 VA
• RACK MOUNTING KIT
• No
• OUTPUT FREQUENCY
• 50/60 Hz
• TYPE OF INTERFACE
• None
• PRIMARY FREQUENCY
• MIN
• 45 Hz
• BATTERY RATING
• 12 V / 4.5 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V
• EXPANSION SLOTS
• No
• INPUT VOLTAGE RANGE
• 140-300 V
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY
• MAX
• 63 Hz

Ha fontos, hogy egy áramszünet ne állítsa le rögtön a munkát, ez jó választás.
